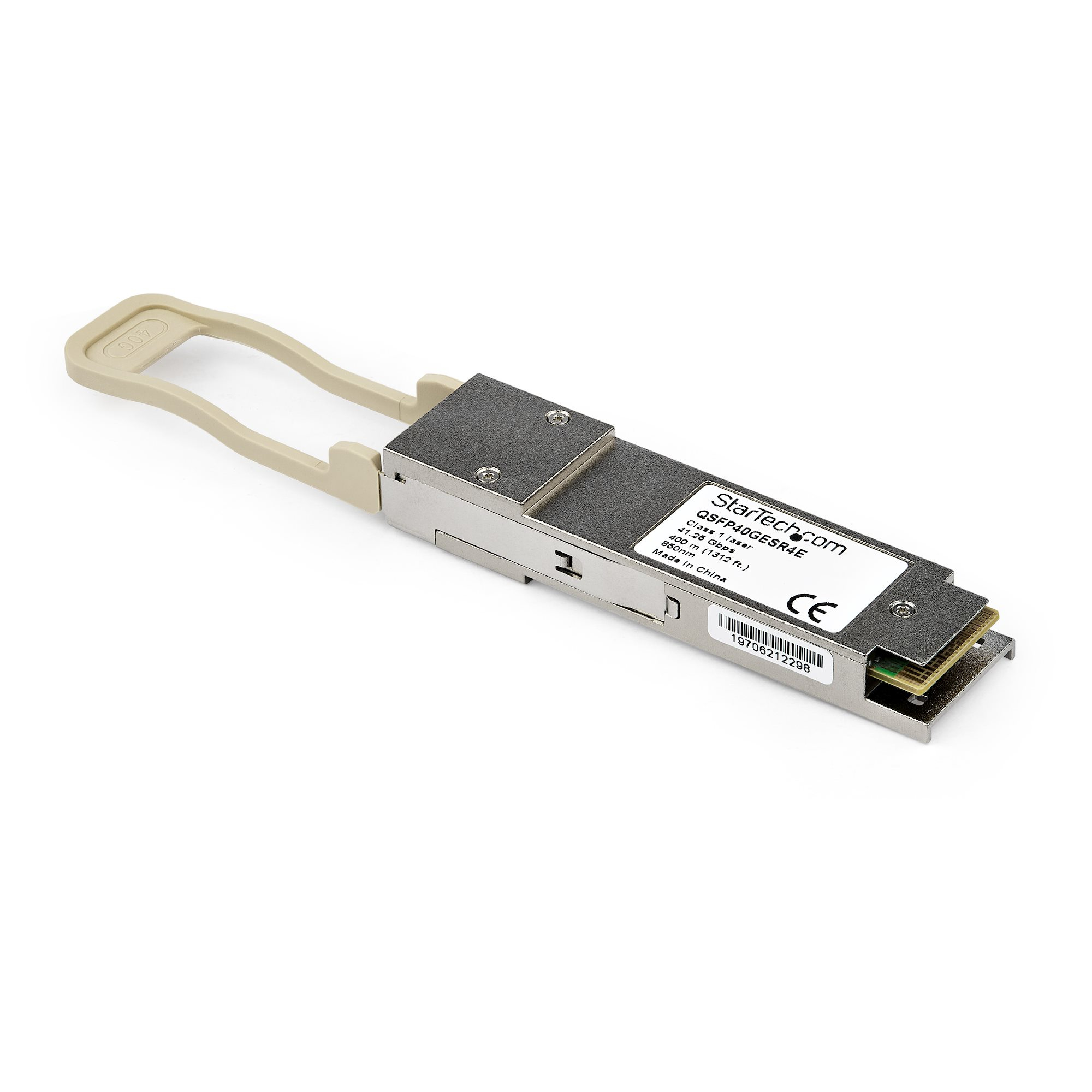

Extreme Networks 10319 Compatible QSFP+ Module - 40GBase-SR4 Fiber Optical Transceiver (10319-ST)
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 4636508
- MPN: 10319-ST
StarTech.com
StarTech.com Extreme Networks 10319 Compatible QSFP+ Module -…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
Overview
40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty
The 10319-ST is an Extreme Networks 10319 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft). Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO Connector
• Maximum Transfer Distance: 150 m (492 ft)
• MTBF: 244,610,583 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The 10319-ST is an Extreme Networks 10319 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft). Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO Connector
• Maximum Transfer Distance: 150 m (492 ft)
• MTBF: 244,610,583 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 40000 Mbit/s
- Interface type: SFP+
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: MPO
- SFP transceiver standard: SR4
- Maximum transfer distance: 150 m
- Wavelength: 850 nm
- Fiber ethernet cabling technology: 40GBASE
- Duplex system: Full
- Digital Diagnostics Monitoring (DDM): Yes
- Product colour: Silver
- Hot-swap: Yes
- Mean time between failures (MTBF): 244610583 h
- Brand compatibility: Extreme Networks
- Compatible products: 10319
- Compliance certificates: RoHS
- Certification: CE, FCC, UR, REACH
- Width: 122 mm
- Depth: 18.6 mm
- Height: 8.5 mm
- Weight: 37.5 g
- Quantity per pack: 1 pc(s)
- Package width: 90 mm
Specifications
Features
| Product colour | Silver |
|---|---|
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 244610583 h |
| Brand compatibility | Extreme Networks |
| Compatible products | 10319 |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | MPO |
| SFP transceiver standard | SR4 |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Fiber ethernet cabling technology | 40GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, UR, REACH |
Logistics data
| Master (outer) case width | 90 mm |
|---|---|
| Master (outer) case length | 115 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
Packaging data
| Package width | 90 mm |
|---|---|
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 122 mm |
|---|---|
| Depth | 18.6 mm |
| Height | 8.5 mm |
| Weight | 37.5 g |
