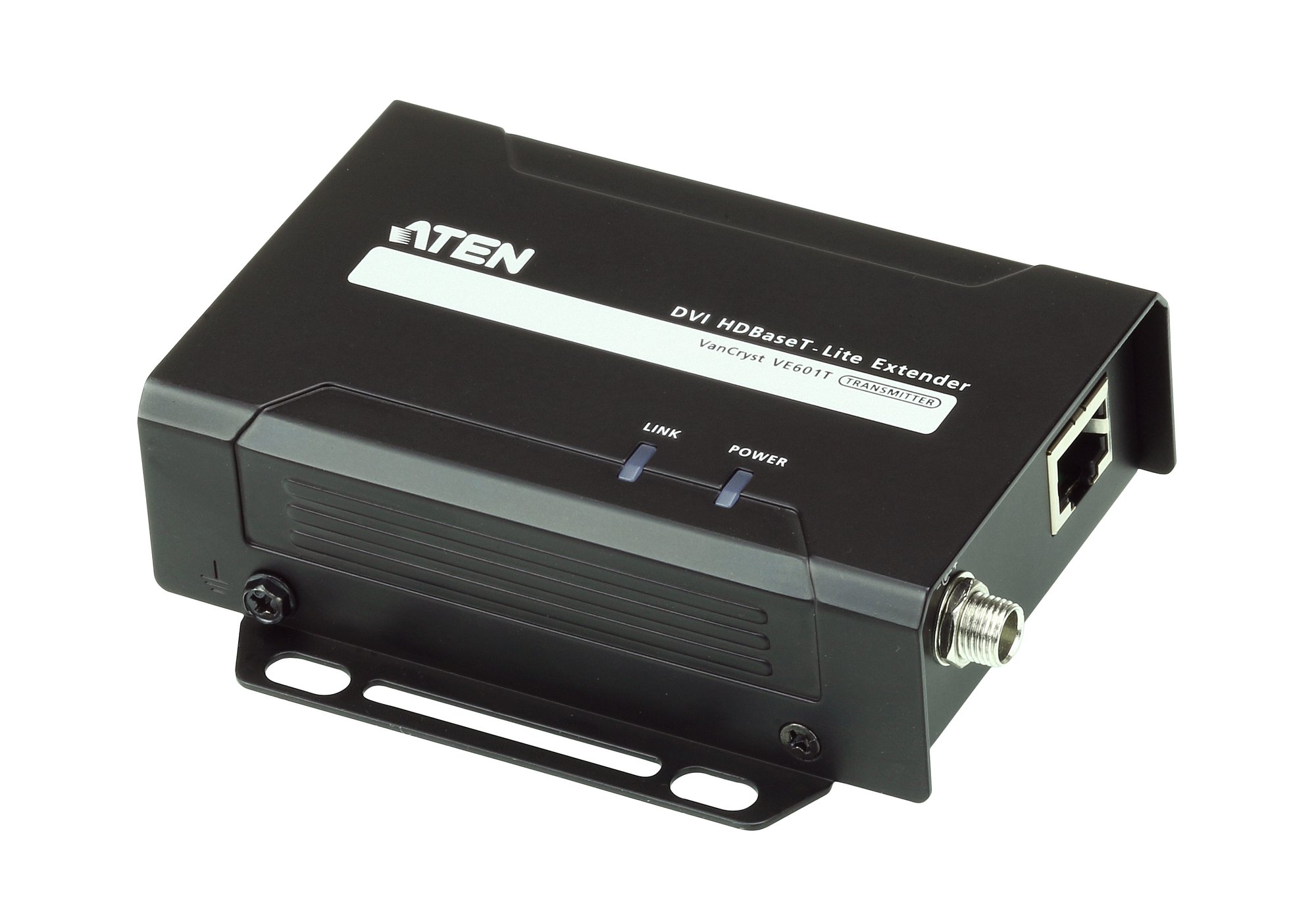

ATEN DVI HDBASET-LITE TRANSMITTER
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VE601T-AT-U
- MPN: VE601T-AT-U
−14%
Overview
The VE601T DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.
Key features
- Type: AV transmitter
- Maximum resolution: 1920 x 1200 pixels
- Cable types supported: Cat6, Cat6a
- Maximum transfer distance: 70 m
- Bandwidth: 340 MHz
- HDCP: Yes
- Material: Metal
- 3D: Yes
- Rack mounting: Yes
- Plug and Play: Yes
- Impedance: 100 Ω
- HDCP version: 1.4
- Product colour: Black
- Connectivity technology: Wired
- RJ-45 output ports: 1
- DVI input ports: 1
- DC-in jack: Yes
- Power source type: DC
- Operating voltage (transmitter): 5 V
- Power consumption (typical): 1.84 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Width: 87 mm
Specifications
Power
| Power source type | DC |
|---|---|
| Operating voltage (transmitter) | 5 V |
| Power consumption (typical) | 1.84 W |
Features
| Type | AV transmitter |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat6, Cat6a |
| Maximum transfer distance | 70 m |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Impedance | 100 Ω |
| HDCP version | 1.4 |
| Product colour | Black |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| RJ-45 output ports | 1 |
| DVI input ports | 1 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 87 mm |
|---|---|
| Depth | 102 mm |
| Height | 30 mm |
| Weight | 250 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
