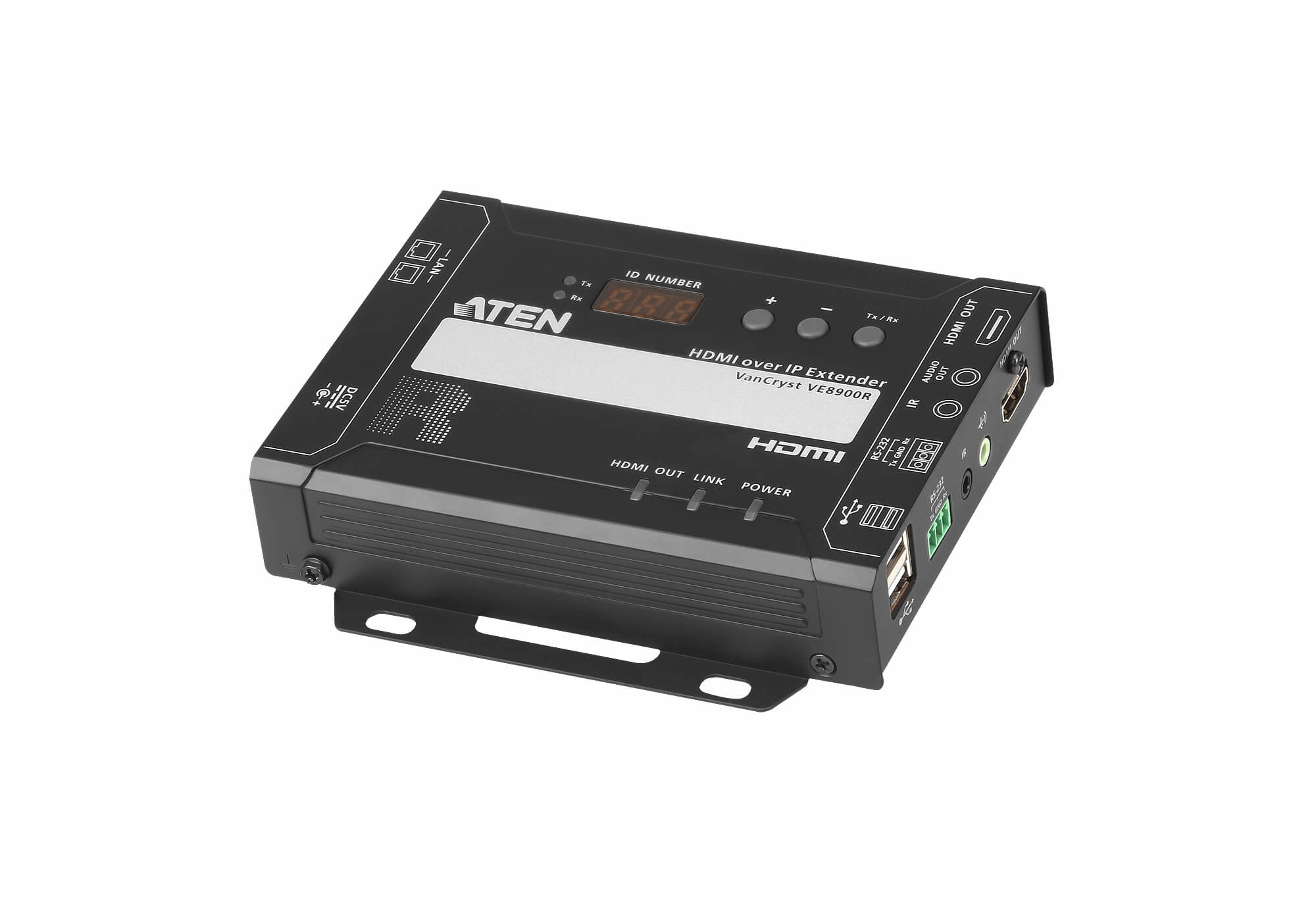

ATEN 1080P HDMI OVER IP RECEIVER
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VE8900R-AT-U
- MPN: VE8900R-AT-U
−11%
Overview
The ATEN VE8900R Video over IP Receiver delivers visually lossless 1080p AV signals with low latency over long distance via a local network of standard Gigabit network switch.
The VE8900R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators
Engineered to meet today’s demands of large scale, multi-display, 1080p signal transmission, and designed to be easy to set up and operate, the VE8900R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.
Package Contents
- 1x VE8900R HDMI over IP Receiver
- 1x RS-232 Terminal block
- 1x 5V Power adapter
- 1x User instructions
The VE8900R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators
Engineered to meet today’s demands of large scale, multi-display, 1080p signal transmission, and designed to be easy to set up and operate, the VE8900R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.
Package Contents
- 1x VE8900R HDMI over IP Receiver
- 1x RS-232 Terminal block
- 1x 5V Power adapter
- 1x User instructions
Key features
- Type: AV receiver
- Cable types supported: Cat5e, Cat6
- Maximum transfer distance: 100 m
- Audio system: stereo
- LED indicators: Yes
- Supported video modes: 1080p
- HDCP: Yes
- Material: Metal
- Baud rate: 19.2 Kbit/s
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Impedance: 100 Ω
- Daisy chain: Yes
- Product colour: Black
- Connectivity technology: Wired
- RJ-45 input ports: 1
- Number of HDMI outputs: 1
- USB ports quantity: 2
- USB version: 2.0
- Video out: 1
- Audio output: 1
- Serial ports quantity: 1
- Serial interface type: RS-232
- Remote (IR) output: 1
- DC-in jack: Yes
Specifications
Power
| Power consumption (typical) | 4.28 W |
|---|
Features
| Type | AV receiver |
|---|---|
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| Audio system | stereo |
| LED indicators | Yes |
| Supported video modes | 1080p |
| HDCP | Yes |
| Material | Metal |
| Baud rate | 19.2 Kbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Impedance | 100 Ω |
| Daisy chain | Yes |
| Product colour | Black |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| RJ-45 input ports | 1 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Video out | 1 |
| Audio output | 1 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 136 mm |
|---|---|
| Depth | 101 mm |
| Height | 29.6 mm |
| Weight | 490 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
